Beam steering using active artificial magnetic conductors: A 10-degree step controlled steering

Vásquez Peralvo, Juan Andrés and Fernández González, José Manuel and Rigelsford, Jonathan M. (2020). Beam steering using active artificial magnetic conductors: A 10-degree step controlled steering. "IEEE Access", v. 8 ; pp. 1-5. ISSN 2169-3536. https://doi.org/10.1109/ACCESS.2020.3027141.

Description

Title: Beam steering using active artificial magnetic conductors: A 10-degree step controlled steering
Author/s:
  • Vásquez Peralvo, Juan Andrés
  • Fernández González, José Manuel
  • Rigelsford, Jonathan M.
Item Type: Article
Event Title: XXXIV Simposium Nacional de la Unión Científica Internacional de Radio (URSI)2019
Event Dates: 04/09/2019 - 06/09/2019
Event Location: Sevilla (España)
Title of Book: Actas del XXXIV Simposium Nacional de la Unión Científica Internacional de Radio (URSI) 2019
Título de Revista/Publicación: IEEE Access
Date: September 2020
ISBN: 978-84-09-12961-4
ISSN: 2169-3536
Volume: 8
Subjects:
Freetext Keywords: Artificial Magnetic Conductors (AMC); beam steering; AMC; periodic structures; printed dipole
Faculty: E.T.S.I. Telecomunicación (UPM)
Department: Señales, Sistemas y Radiocomunicaciones
Creative Commons Licenses: Recognition - No derivative works - Non commercial

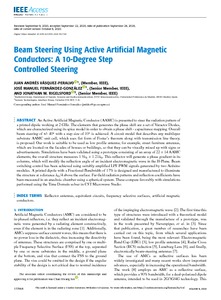

Full text

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (4MB) | Preview

Abstract

An Active Artificial Magnetic Conductor (AAMC) is presented to steer the radiation pattern of a printed dipole working at 2 GHz. The elements that generates the phase shift are a set of Varactor Diodes, which are characterized using its spice model in order to obtain a phase shift - capacitance mapping. Overall beam steering of +/- 40° with a step size of 10° is achieved. A circuit model that describes any multilayer substrate AAMC unit cell, which uses fist form of Foster’s theorem along with transmission line theory, is proposed. Our work is suitable to be used as low profile antenna; for example, street furniture antennas, which are located on the facades of houses or buildings, so that they can be visually mixed up with signs or advertisements. Simulations have been validated using a prototype consisting of an array of 22×14 AAMC elements; the overall structure measures 1.9λ0×1.21λ0 . This reflector will generate a phase gradient in its columns, which will modify the reflection angle of an incident electromagnetic wave in the H-Plane. Beam switching control has been achieved using suitably amplified LPF PWM signals generated by two Arduino modules. A printed dipole with a Fractional Bandwidth of 17% is designed and manufactured to illuminate the structure at a distance λ0/4 above the surface. Far-field radiation patterns and reflection coefficients have been measured in an anechoic chamber using a spherical system. These compare favorably with simulations performed using the Time Domain solver in CST Microwave Studio.

Funding Projects

TypeCodeAcronymLeaderTitle
Government of SpainTEC2017-85529-C3-1-RFUTURE-RADIOUnspecifiedRadio systems and technologies for high capacity terrestrial and satellite communications in an hyperconnected world
Madrid Regional GovernmentS2013/ICE-3000SPADERADAR-CMUnspecifiedSpace Debris Radar- Radar para detección de basura espacial

More information

Item ID: 64540
DC Identifier: https://oa.upm.es/64540/
OAI Identifier: oai:oa.upm.es:64540
DOI: 10.1109/ACCESS.2020.3027141
Official URL: https://ieeexplore.ieee.org/document/9207728
Deposited by: Memoria Investigacion
Deposited on: 10 May 2021 13:32
Last Modified: 10 May 2021 13:32
