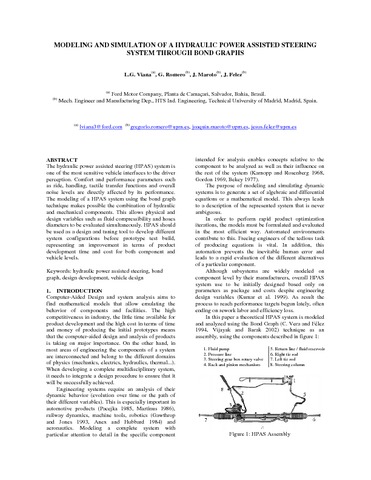

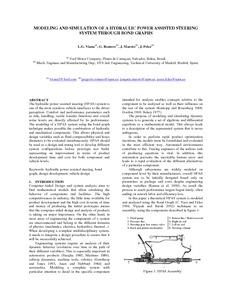

Modelling and simulation of a hydraulic power assisted steering system through Bond Graphs

Abstract

The hydraulic power assisted steering (HPAS) system is one of the most sensitive vehicle interfaces to the driver perception. Comfort and performance parameters such as ride, handling, tactile transfer functions and overall noise levels are directly affected by its performance. The modeling of a HPAS system using the bond graph technique makes possible the combination of hydraulic and mechanical components. This allows physical and design variables such as fluid compressibility and hoses diameters to be evaluated simultaneously. HPAS should be used as a design and tuning tool to develop different system configurations before prototype test build, representing an improvement in terms of product development time and cost for both component and vehicle levels
