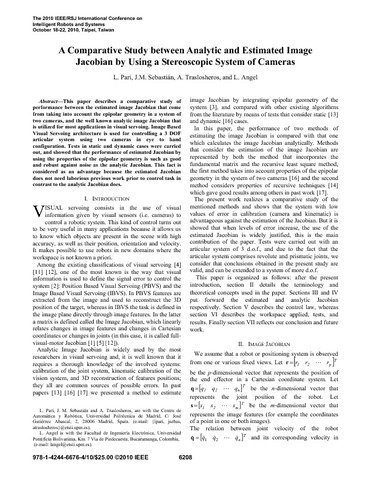

A Comparative Study between Analytic and Estimated Image Jacobian by Using a Stereoscopic System of Cameras

Abstract

This paper describes a comparative study of performance between the estimated image Jacobian that come from taking into account the epipolar geometry in a system of two cameras, and the well known analytic image Jacobian that is utilized for most applications in visual servoing. Image Based Visual Servoing architecture is used for controlling a 3 DOF articular system using two cameras in eye to hand configuration. Tests in static and dynamic cases were carried out, and showed that the performance of estimated Jacobian by using the properties of the epipolar geometry is such as good and robust against noise as the analytic Jacobian. This fact is considered as an advantage because the estimated Jacobian does not need laborious previous work prior to control task in contrast to the analytic Jacobian does.
