Differences into HT and HTO concentrations in air into the Western Mediterranean Basin and Continental Europe and Safety Related Issues.

Castro, P. and Velarde Mayol, Marta and Ardao, Jose and Perlado Martín, José Manuel and Sedano, L. (2011). Differences into HT and HTO concentrations in air into the Western Mediterranean Basin and Continental Europe and Safety Related Issues.. In: "2011 IEEE/NPSS 24th Symposium on Fusion Engineering (SOFE)", 26/06/2011 - 30/06/2011, Chicago, IL EEUU. ISBN 978-1-4577-0669-1. pp. 1-5. https://doi.org/10.1109/SOFE.2011.6052268.

Description

Title: Differences into HT and HTO concentrations in air into the Western Mediterranean Basin and Continental Europe and Safety Related Issues.
Author/s:
  • Castro, P.
  • Velarde Mayol, Marta
  • Ardao, Jose
  • Perlado Martín, José Manuel
  • Sedano, L.
Item Type: Presentation at Congress or Conference (Article)
Event Title: 2011 IEEE/NPSS 24th Symposium on Fusion Engineering (SOFE)
Event Dates: 26/06/2011 - 30/06/2011
Event Location: Chicago, IL EEUU
Title of Book: Proceedings of 2011 IEEE/NPSS 24th Symposium on Fusion Engineering (SOFE)
Date: 2011
ISBN: 978-1-4577-0669-1
Subjects:
Faculty: E.T.S.I. Industriales (UPM)
Department: Otro
Creative Commons Licenses: Recognition - No derivative works - Non commercial

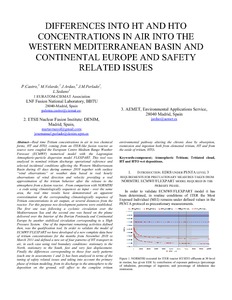

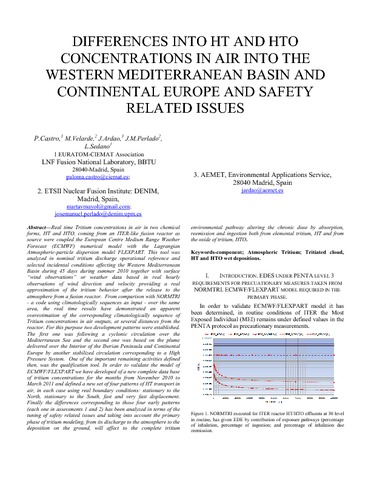

Full text

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (1MB) | Preview

Abstract

Real time Tritium concentrations in air in two chemical forms, HT and HTO, coming from an ITER-like fusion reactor as source were coupled the European Centre Medium Range Weather Forecast (ECMWF) numerical model with the Lagrangian Atmospheric-particle dispersion model FLEXPART. This tool was analyzed in nominal tritium discharge operational reference and selected incidental conditions affecting the Western Mediterranean Basin during 45 days during summer 2010 together with surface “wind observations” or weather data based in real hourly observations of wind direction and velocity providing a real approximation of the tritium behavior after the release to the atmosphere from a fusion reactor. From comparison with NORMTRI - a code using climatologically sequences as input - over the same area, the real time results have demonstrated an apparent overestimation of the corresponding climatologically sequence of Tritium concentrations in air outputs, at several distances from the reactor. For this purpose two development patterns were established. The first one was following a cyclonic circulation over the Mediterranean Sea and the second one was based on the plume delivered over the Interior of the Iberian Peninsula and Continental Europe by another stabilized circulation corresponding to a High Pressure System. One of the important remaining activities defined then, was the qualification tool. In order to validate the model of ECMWF/FLEXPART we have developed of a new complete data base of tritium concentrations for the months from November 2010 to March 2011 and defined a new set of four patterns of HT transport in air, in each case using real boundary conditions: stationary to the North, stationary to the South, fast and very fast displacement. Finally the differences corresponding to those four early patterns (each one in assessments 1 and 2) has been analyzed in terms of the tuning of safety related issues and taking into account the primary phase o- - f tritium modeling, from its discharge to the atmosphere to the deposition on the ground, will affect to the complete tritium environmental pathway altering the chronic dose by absorption, reemission and ingestion both from elemental tritium, HT and from the oxide of tritium, HTO

More information

Item ID: 12748
DC Identifier: http://oa.upm.es/12748/
OAI Identifier: oai:oa.upm.es:12748
DOI: 10.1109/SOFE.2011.6052268
Official URL: http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6052268
Deposited by: Memoria Investigacion
Deposited on: 13 Dec 2012 18:31
Last Modified: 07 Sep 2017 17:54
