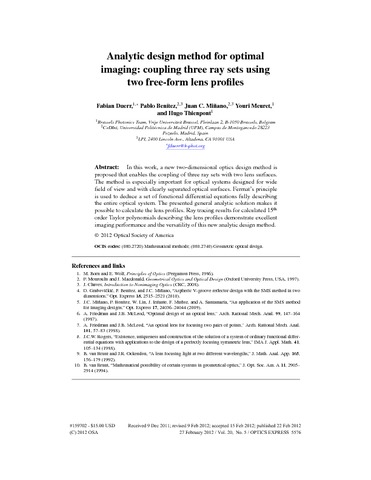

Analytic design method for optimal imaging: coupling three ray sets using two free-form lens profiles
Cita
Duerr, Fabian, Benítez Giménez, Pablo
ORCID: https://orcid.org/0000-0002-5559-4593, Miñano Dominguez, Juan Carlos ORCID: https://orcid.org/0000-0003-2281-0728, Meuret, Youri and Thienpont, Hugo
(2012).
Analytic design method for optimal imaging: coupling three ray sets using two free-form lens profiles.
"OPTICS EXPRESS", v. 20
(n. 5);
pp. 5576-5585.
ISSN 1094-4087.
ORCID: https://orcid.org/0000-0002-5559-4593, Miñano Dominguez, Juan Carlos ORCID: https://orcid.org/0000-0003-2281-0728, Meuret, Youri and Thienpont, Hugo
(2012).
Analytic design method for optimal imaging: coupling three ray sets using two free-form lens profiles.
"OPTICS EXPRESS", v. 20
(n. 5);
pp. 5576-5585.
ISSN 1094-4087.
Descripción
| Título: | Analytic design method for optimal imaging: coupling three ray sets using two free-form lens profiles |
|---|---|
| Autor/es: |
|
| Tipo de Documento: | Artículo |
| Título de Revista/Publicación: | OPTICS EXPRESS |
| Fecha: | 27 Febrero 2012 |
| ISSN: | 1094-4087 |
| Volumen: | 20 |
| Número: | 5 |
| Materias: | |
| ODS: | |
| Escuela: | E.T.S.I. Telecomunicación (UPM) |
| Departamento: | Electrónica Física |
| Licencias Creative Commons: | Reconocimiento - Sin obra derivada - No comercial |
Resumen
In this work, a new two-dimensional optics design method is proposed that enables the coupling of three ray sets with two lens surfaces. The method is especially important for optical systems designed for wide field of view and with clearly separated optical surfaces. Fermat’s principle is used to deduce a set of functional differential equations fully describing the entire optical system. The presented general analytic solution makes it possible to calculate the lens profiles. Ray tracing results for calculated 15th order Taylor polynomials describing the lens profiles demonstrate excellent imaging performance and the versatility of this new analytic design method.
