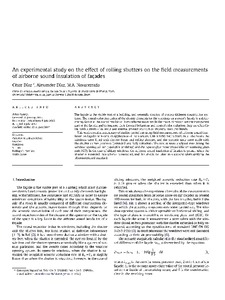

An experimental study on the effect of rolling shutters on the field measurements of airborne sound insulation of façades

Resumen

The façade is the visible part of a building, and generally consists of various different constructive systems. The sound reduction index of the closing elements for the openings on a room’s façade is a determining factor in the sound insulation from airborne noise inside the space. Windows are the transparent part of the façade, and to improve their thermal behaviour and control solar radiation, they are often fitted with a series of external and internal protections such as shutters, slats and blinds.
This work contains a summary of studies carried out using field measurements of airborne sound insulation on façades in rooms, in application of the standard UNE-EN ISO 140-5:1999. In all the rooms the windows were fitted with shutter boxes and rolling shutters, and the acoustic tests were made with the shutter in two positions (extended and fully retracted). The results were analysed considering the window opening system (openable or sliding) and the type of glass pane (monolithic or insulating glass unit, IGU). In the case of sliding windows, the airborne sound insulation of façades is greater when the shutter is extended than when it is retracted, and this should be taken into account when applying the aforementioned standard.
