SMS-based optimization strategy for ultra-compact SWIR telephoto lens design

Wang, Lin and Benitez Gimenez, Pablo and Miñano Dominguez, Juan Carlos and Infante Herrero, Jose Manuel and Biot Marí, Guillermo and Fuente Puente, Marta de la (2012). SMS-based optimization strategy for ultra-compact SWIR telephoto lens design. "Optics Express", v. 20 (n. 9); pp. 9726-9735. ISSN 1094-4087. https://doi.org/10.1364/OE.20.009726.

Description

Title: SMS-based optimization strategy for ultra-compact SWIR telephoto lens design
Author/s:
  • Wang, Lin
  • Benitez Gimenez, Pablo
  • Miñano Dominguez, Juan Carlos
  • Infante Herrero, Jose Manuel
  • Biot Marí, Guillermo
  • Fuente Puente, Marta de la
Item Type: Article
Título de Revista/Publicación: Optics Express
Date: April 2012
Volume: 20
Subjects:
Faculty: E.T.S.I. Telecomunicación (UPM)
Department: Electrónica Física
Creative Commons Licenses: Recognition - No derivative works - Non commercial

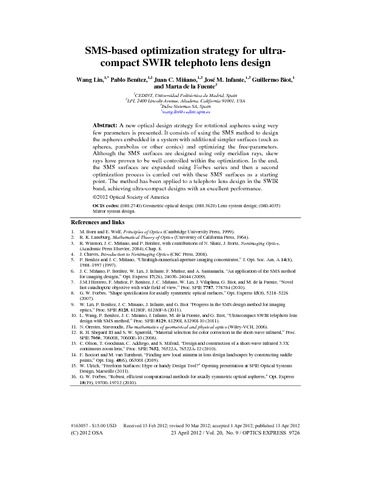

Full text

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (1MB) | Preview

Abstract

A new optical design strategy for rotational aspheres using very few parameters is presented. It consists of using the SMS method to design the aspheres embedded in a system with additional simpler surfaces (such as spheres, parabolas or other conics) and optimizing the free-parameters. Although the SMS surfaces are designed using only meridian rays, skew rays have proven to be well controlled within the optimization. In the end, the SMS surfaces are expanded using Forbes series and then a second optimization process is carried out with these SMS surfaces as a starting point. The method has been applied to a telephoto lens design in the SWIR band, achieving ultra-compact designs with an excellent performance.

More information

Item ID: 19897
DC Identifier: http://oa.upm.es/19897/
OAI Identifier: oai:oa.upm.es:19897
DOI: 10.1364/OE.20.009726
Official URL: http://www.opticsinfobase.org/oe/abstract.cfm?uri=oe-20-9-9726
Deposited by: Memoria Investigacion
Deposited on: 22 Sep 2013 07:26
Last Modified: 21 Apr 2016 21:44
