Water chemistry at Hontomín-Huermeces (Burgos, Spain): insights for a pre-, intra- and post-CO2 injection geochemical monitoring.

Nisi, Bárbara and Vaselli, Orlando and Tassi, Franco and Elio Medina, Javier de and Delgado Huertas, Antonio and Mazadiego Martínez, Luis Felipe and Ortega Romero, Marcelo (2013). Water chemistry at Hontomín-Huermeces (Burgos, Spain): insights for a pre-, intra- and post-CO2 injection geochemical monitoring.. In: "EGU General Assembly 2013", 07/04/2013 - 12/04/2013, Viena (Austria). p. 1.

Description

Title: Water chemistry at Hontomín-Huermeces (Burgos, Spain): insights for a pre-, intra- and post-CO2 injection geochemical monitoring.
Author/s:
  • Nisi, Bárbara
  • Vaselli, Orlando
  • Tassi, Franco
  • Elio Medina, Javier de
  • Delgado Huertas, Antonio
  • Mazadiego Martínez, Luis Felipe
  • Ortega Romero, Marcelo
Item Type: Presentation at Congress or Conference (Other)
Event Title: EGU General Assembly 2013
Event Dates: 07/04/2013 - 12/04/2013
Event Location: Viena (Austria)
Title of Book: Geophysical Research Abstracts
Date: 2013
Volume: 15
Subjects:
Faculty: E.T.S.I. Minas (UPM)
Department: Explotación de Recursos Minerales y Obras Subterráneas [hasta 2014]
Creative Commons Licenses: Recognition - No derivative works - Non commercial

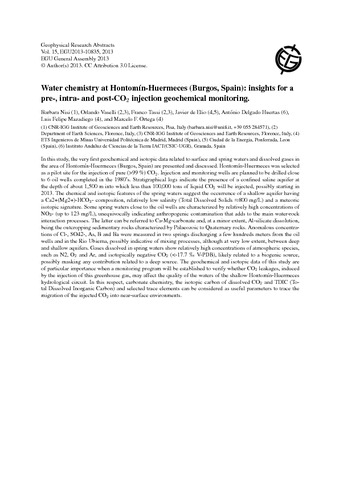

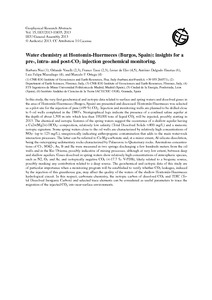

Full text

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (49kB) | Preview

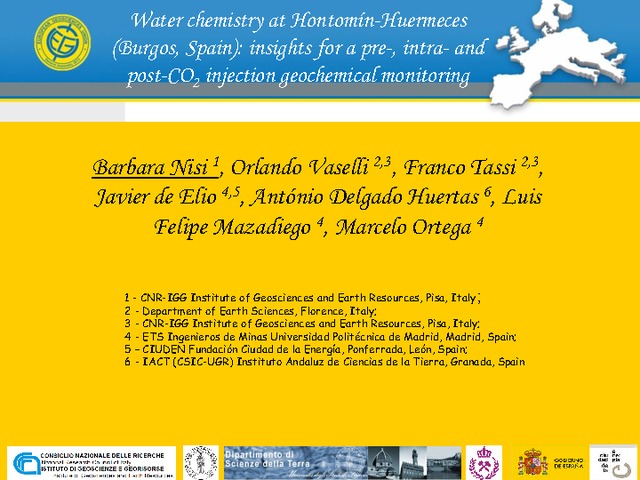

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (3MB) | Preview

Abstract

In this study, the very first geochemical and isotopic data related to surface and spring waters and dissolved gases in the area of Hontomín-Huermeces (Burgos, Spain) are presented and discussed. Hontomín-Huermeces was selected as a pilot site for the injection of pure (>99 %) CO2. Injection and monitoring wells are planned to be drilled close to 6 oil wells completed in the 1980’s. Stratigraphical logs indicate the presence of a confined saline aquifer at the depth of about 1,500 m into which less than 100,000 tons of liquid CO2 will be injected, possibly starting in 2013. The chemical and isotopic features of the spring waters suggest the occurrence of a shallow aquifer having a Ca2+(Mg2+)-HCO3- composition, relatively low salinity (Total Dissolved Solids _800 mg/L) and a meteoric isotopic signature. Some spring waters close to the oil wells are characterized by relatively high concentrations of NO3- (up to 123 mg/L), unequivocally indicating anthropogenic contamination that adds to the main water-rock interaction processes. The latter can be referred to Ca-Mg-carbonate and, at a minor extent, Al-silicate dissolution, being the outcropping sedimentary rocks characterized by Palaeozoic to Quaternary rocks. Anomalous concentrations of Cl-, SO42-, As, B and Ba were measured in two springs discharging a few hundreds meters from the oil wells and in the Rio Ubierna, possibly indicative of mixing processes, although at very low extent, between deep and shallow aquifers. Gases dissolved in spring waters show relatively high concentrations of atmospheric species, such as N2, O2 and Ar, and isotopically negative CO2 (<-17.7 h V-PDB), likely related to a biogenic source, possibly masking any contribution related to a deep source. The geochemical and isotopic data of this study are of particular importance when a monitoring program will be established to verify whether CO2 leakages, induced by the injection of this greenhouse gas, may affect the quality of the waters of the shallow Hontomín-Huermeces hydrological circuit. In this respect, carbonate chemistry, the isotopic carbon of dissolved CO2 and TDIC (Total Dissolved Inorganic Carbon) and selected trace elements can be considered as useful parameters to trace the migration of the injected CO2 into near-surface environments.

More information

Item ID: 21006
DC Identifier: http://oa.upm.es/21006/
OAI Identifier: oai:oa.upm.es:21006
Official URL: http://www.egu2013.eu/
Deposited by: Memoria Investigacion
Deposited on: 07 Oct 2013 10:08
Last Modified: 21 Apr 2016 11:06
