Assessing the dynamic behavior of wsn motes and rfid semi-passive tags for temperature monitoring.

Badia-Melis, Ricardo and García-Hierro, Javier and Ruiz García, Luis and Jiménez Ariza, Heidi Tatiana and Robla Villalva, Jose Ignacio and Barreiro Elorza, Pilar (2012). Assessing the dynamic behavior of wsn motes and rfid semi-passive tags for temperature monitoring.. In: "International Conference of Agricultural Engineering. CIGR-Ageng2012", 08/07/2012 - 12/07/2012, Valencia-España. pp. 1-6.

Description

Title: Assessing the dynamic behavior of wsn motes and rfid semi-passive tags for temperature monitoring.
Author/s:
  • Badia-Melis, Ricardo
  • García-Hierro, Javier
  • Ruiz García, Luis
  • Jiménez Ariza, Heidi Tatiana
  • Robla Villalva, Jose Ignacio
  • Barreiro Elorza, Pilar
Item Type: Presentation at Congress or Conference (Article)
Event Title: International Conference of Agricultural Engineering. CIGR-Ageng2012
Event Dates: 08/07/2012 - 12/07/2012
Event Location: Valencia-España
Title of Book: Proceedings of International Conference of Agricultural Engineering. CIGR-Ageng2012
Date: July 2012
Subjects:
Faculty: E.T.S.I. Agrónomos (UPM) [antigua denominación]
Department: Ingeniería Rural [hasta 2014]
Creative Commons Licenses: Recognition - No derivative works - Non commercial

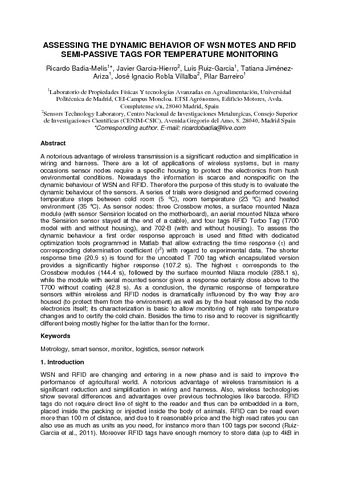

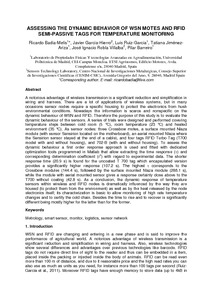

Full text

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (337kB) | Preview

Abstract

A notorious advantage of wireless transmission is a significant reduction and simplification in wiring and harness. There are a lot of applications of wireless systems, but in many occasions sensor nodes require a specific housing to protect the electronics from hush environmental conditions. Nowadays the information is scarce and nonspecific on the dynamic behaviour of WSN and RFID. Therefore the purpose of this study is to evaluate the dynamic behaviour of the sensors. A series of trials were designed and performed covering temperature steps between cold room (5 °C), room temperature (23 °C) and heated environment (35 °C). As sensor nodes: three Crossbow motes, a surface mounted Nlaza module (with sensor Sensirion located on the motherboard), an aerial mounted Nlaza where the Sensirion sensor stayed at the end of a cable), and four tags RFID Turbo Tag (T700 model with and without housing), and 702-B (with and without housing). To assess the dynamic behaviour a first order response approach is used and fitted with dedicated optimization tools programmed in Matlab that allow extracting the time response (?) and corresponding determination coefficient (r2) with regard to experimental data. The shorter response time (20.9 s) is found for the uncoated T 700 tag which encapsulated version provides a significantly higher response (107.2 s). The highest ? corresponds to the Crossbow modules (144.4 s), followed by the surface mounted Nlaza module (288.1 s), while the module with aerial mounted sensor gives a response certainly close above to the T700 without coating (42.8 s). As a conclusion, the dynamic response of temperature sensors within wireless and RFID nodes is dramatically influenced by the way they are housed (to protect them from the environment) as well as by the heat released by the node electronics itself; its characterization is basic to allow monitoring of high rate temperature changes and to certify the cold chain. Besides the time to rise and to recover is significantly different being mostly higher for the latter than for the former.
