Quantitative evaluation of patient-specific conforming hexahedral meshes of abdominal aortic aneurysms and intraluminal thrombus generated from MRI

Tarjuelo Gutierrez, Jaime; Rodríguez Vila, Borja; Pierce, David M.; Fastl, Thomas y Gómez Aguilera, Enrique J. (2014). Quantitative evaluation of patient-specific conforming hexahedral meshes of abdominal aortic aneurysms and intraluminal thrombus generated from MRI. En: "XIII Mediterranean Conference on Medical and Biological Engineering and Computing (MEDICON 2013)", 25/09/2013 - 28/09/2013, Sevilla, Spain. pp. 210-213. https://doi.org/10.1007/978-3-319-00846-2_52.

Descripción

Título: Quantitative evaluation of patient-specific conforming hexahedral meshes of abdominal aortic aneurysms and intraluminal thrombus generated from MRI
Autor/es:
  • Tarjuelo Gutierrez, Jaime
  • Rodríguez Vila, Borja
  • Pierce, David M.
  • Fastl, Thomas
  • Gómez Aguilera, Enrique J.
Tipo de Documento: Ponencia en Congreso o Jornada (Artículo)
Título del Evento: XIII Mediterranean Conference on Medical and Biological Engineering and Computing (MEDICON 2013)
Fechas del Evento: 25/09/2013 - 28/09/2013
Lugar del Evento: Sevilla, Spain
Título del Libro: IFMBE Proceedings
Fecha: 2014
Volumen: 41
Materias:
Palabras Clave Informales: Magnetic resonance imaging, abdominal aortic aneurysm, intraluminal thrombus, conforming hexahedral meshes, finite element analysis
Escuela: E.T.S.I. Telecomunicación (UPM)
Departamento: Tecnología Fotónica [hasta 2014]
Licencias Creative Commons: Reconocimiento - Sin obra derivada - No comercial

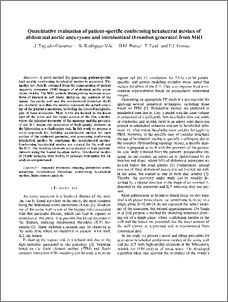

Texto completo

[img]
Vista Previa
PDF (Document Portable Format) - Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (1MB)

Resumen

A novel method for generating patient-specific high quality conforming hexahedral meshes is presented. The meshes are directly obtained from the segmentation of patient magnetic resonance (MR) images of abdominal aortic aneu-rysms (AAA). The MRI permits distinguishing between struc-tures of interest in soft tissue. Being so, the contours of the lumen, the aortic wall and the intraluminal thrombus (ILT) are available and thus the meshes represent the actual anato-my of the patient?s aneurysm, including the layered morpholo-gies of these structures. Most AAAs are located in the lower part of the aorta and the upper section of the iliac arteries, where the inherent tortuosity of the anatomy and the presence of the ILT makes the generation of high-quality elements at the bifurcation is a challenging task. In this work we propose a novel approach for building quadrilateral meshes for each surface of the sectioned geometry, and generating conforming hexahedral meshes by combining the quadrilateral meshes. Conforming hexahedral meshes are created for the wall and the ILT. The resulting elements are evaluated on four patients? datasets using the Scaled Jacobian metric. Hexahedral meshes of 25,000 elements with 94.8% of elements well-suited for FE analysis are generated.

Más información

ID de Registro: 26107
Identificador DC: http://oa.upm.es/26107/
Identificador OAI: oai:oa.upm.es:26107
Identificador DOI: 10.1007/978-3-319-00846-2_52
Depositado por: Memoria Investigacion
Depositado el: 27 May 2014 16:46
Ultima Modificación: 27 Abr 2016 07:16
