Geometric documentation of the flour factory "El Puente Colgante" in Aranjuez (Madrid).

Millán Ghisleri, Juan and Rojas Sola, José Ignacio and San Antonio Gomez, Jose Carlos de (2013). Geometric documentation of the flour factory "El Puente Colgante" in Aranjuez (Madrid).. In: "XIII International Conference on Graphics Engineering", 19/06/2013 - 21/06/2013, Madrid.

Description

Title: Geometric documentation of the flour factory "El Puente Colgante" in Aranjuez (Madrid).
Author/s:
  • Millán Ghisleri, Juan
  • Rojas Sola, José Ignacio
  • San Antonio Gomez, Jose Carlos de
Item Type: Presentation at Congress or Conference (Article)
Event Title: XIII International Conference on Graphics Engineering
Event Dates: 19/06/2013 - 21/06/2013
Event Location: Madrid
Title of Book: Proceedings of the International Conference on Graphics Engineering
Date: 2013
Subjects:
Faculty: E.T.S.I. Agrónomos (UPM) [antigua denominación]
Department: Ingeniería Cartográfica, Geodesia y Fotogrametría [hasta 2014]
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

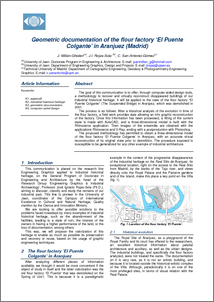

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (809kB)

Abstract

The goal of this communication is to offer, through computer-aided design tools, a methodology to recover and virtually reconstruct disappeared buildings of our industrial historical heritage. It will be applied to the case of the flour factory "El Puente Colgante" (The Suspended Bridge) in Aranjuez, which was demolished in 2001. The process is as follows: After a historical analysis of the evolution in time of the flour factory, a field work provides data allowing an info graphic reconstruction of the factory. Once this information has been processed, a lifting of the current state is made with AutoCAD, and a three-dimensional model is built with the Rhinoceros application. Then images of the ensemble are obtained with the applications Rhinoceros and V-Ray, ending with a postproduction with Photoshop. The proposed methodology has permitted to obtain a three-dimensional model of the flour factory ?El Puente Colgante? in Aranjuez, with an accurate virtual reconstruction of its original state prior to demolition. The procedure exposed is susceptible to be generalized for any other example of industrial architecture.

More information

Item ID: 26464
DC Identifier: http://oa.upm.es/26464/
OAI Identifier: oai:oa.upm.es:26464
Official URL: http://www.congresoingegraf.es/
Deposited by: Memoria Investigacion
Deposited on: 02 Jul 2014 14:26
Last Modified: 22 Sep 2014 11:41
