Forward micro-inverter with primary-parallel secondary-series multicore transformer

Meneses Herrera, David and García Suárez, Oscar and Alou Cervera, Pedro and Oliver Ramírez, Jesús Angel and Prieto López, Roberto and Cobos Márquez, José Antonio (2013). Forward micro-inverter with primary-parallel secondary-series multicore transformer. In: "Applied Power Electronics Conference and Exposition (APEC), 2014 Twenty-Ninth Annual IEEE", 16/03/2014 - 20/03/2014, Fort Worth, TX. pp. 1-5.

Description

Title: Forward micro-inverter with primary-parallel secondary-series multicore transformer
Author/s:
  • Meneses Herrera, David
  • García Suárez, Oscar
  • Alou Cervera, Pedro
  • Oliver Ramírez, Jesús Angel
  • Prieto López, Roberto
  • Cobos Márquez, José Antonio
Item Type: Presentation at Congress or Conference (Article)
Event Title: Applied Power Electronics Conference and Exposition (APEC), 2014 Twenty-Ninth Annual IEEE
Event Dates: 16/03/2014 - 20/03/2014
Event Location: Fort Worth, TX
Title of Book: Applied Power Electronics Conference and Exposition (APEC), 2014 Twenty-Ninth Annual IEEE
Date: 2013
Subjects:
Faculty: E.T.S.I. Industriales (UPM)
Department: Automática, Ingeniería Electrónica e Informática Industrial [hasta 2014]
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

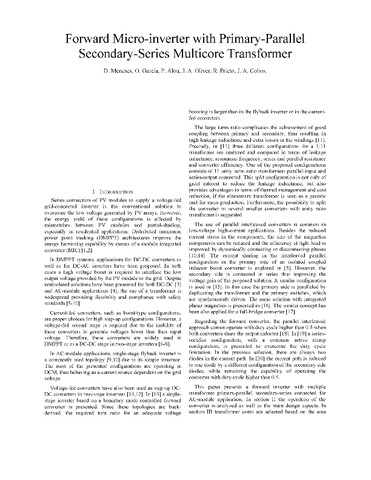

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (3MB) | Preview

Abstract

This paper presents a primary-parallel secondary-series multicore forward micro-inverter for photovoltaic AC-module application. The proposed solution changes the number of active phases depending on the grid voltage, thus enabling the usage of low-profile unitary turns ratio transformers. Therefore, the transformers are well coupled and the overall performance of the inverter is improved. Due to the multiphase solution the number of devices increases but, the current stress and losses per device are reduced contributing to an easier thermal management. Furthermore, the decoupling capacitor is split between the phases, contributing to a low-profile solution without electrolytic capacitors suitable to be mounted in the frame of a PV module.

More information

Item ID: 29696
DC Identifier: http://oa.upm.es/29696/
OAI Identifier: oai:oa.upm.es:29696
Official URL: http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=6803726
Deposited by: Memoria Investigacion
Deposited on: 07 May 2015 15:46
Last Modified: 11 May 2015 14:49
