Optimisation of a Low-Speed Wind Tunnel. Analysis and Redesign of Corner Vanes.

López de Vega, Luis; Maldonado Fernández, Francisco Javier y Muñoz Botas, Pedro (2014). Optimisation of a Low-Speed Wind Tunnel. Analysis and Redesign of Corner Vanes.. Proyecto Fin de Carrera / Trabajo Fin de Grado, E.T.S. de Ingeniería Aeronáutica y del Espacio (UPM).

Descripción

Título: Optimisation of a Low-Speed Wind Tunnel. Analysis and Redesign of Corner Vanes.
Autor/es:
  • López de Vega, Luis
  • Maldonado Fernández, Francisco Javier
  • Muñoz Botas, Pedro
Director/es:
  • González Hernández, Miguel Angel
Tipo de Documento: Proyecto Fin de Carrera/Grado
Fecha: Mayo 2014
Materias:
Escuela: E.T.S. de Ingeniería Aeronáutica y del Espacio (UPM)
Departamento: Vehículos Aeroespaciales [hasta 2014]
Licencias Creative Commons: Reconocimiento - Sin obra derivada - No comercial

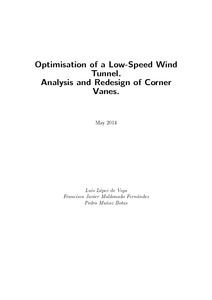

Texto completo

[img]
Vista Previa
PDF (Document Portable Format) - Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (3MB) | Vista Previa

Resumen

This paper includes the experimental study, analysis, redesign and subsequent test of the parts of a closed circuit, low speed wind tunnel which are relevant in terms of total pressure loss. The objective is to lower the energy consumption of this system for given conditions in test chamber, so as to reduce the operational costs. In order to achieve this objective, several tasks were performed as the text shows in its different parts. For these tasks, the ETSIAE wind tunnel was used, although the results of this work can be extrapolated to any wind tunnel with the same characteristics. Part II presents a theoretical previous study of the general running of a closed circuit, low speed wind tunnel, as well as the followed procedure to conduct experimental tests for obtaining the total pressure loss in its parts. Results from these tests and their analysis are included in this part. In part III, the analysis of the influence of corner 1 on the pressure loss takes place. As it is said in this part, corner 1 has great importance in the total pressure loss of the wind tunnel. Therefore, it is the first part that should be modified in order to improve the performances of the wind tunnel. During part IV, an optimised guide vane is designed in order to reduce the pressure loss in corner 1 of the wind tunnel. Software MISES is used to achieve this goal by means of selecting the optimum guide vane. In order to introduce the new guide vane in wind tunnels with affordable costs, the easily constructable criterion is kept during design. For this reason, the guide vane will consist of simple aerodynamic contours. Part V includes some possible improvements for the proposed guide vane, in order to evaluate if there is room for improvement in its design. Finally, part VI includes the tests that were conducted in the wind tunnel with the new guide vane cascade and the analysis of their results, in order to asses whether the proposed design fulfills the requirement of lowering the total pressure loss in the wind tunnel. Part VII gathers the main ideas resulting from the whole work.

Más información

ID de Registro: 29889
Identificador DC: http://oa.upm.es/29889/
Identificador OAI: oai:oa.upm.es:29889
Depositado por: Archivo Digital UPM
Depositado el: 13 Jun 2014 11:35
Ultima Modificación: 22 Abr 2016 00:14
