High-quality conforming hexahedral meshes of patient-specific abdominal aortic aneurysms including their intraluminal thrombi

Tarjuelo Gutierrez, Jaime and Rodríguez Vila, Borja and Pierce, David M. and Fastl, Thomas and Verbrugghe, P. and Fourneau, I. and Maleux, G. and Herijgers, P. and Holzapfel, G.A. and Gómez Aguilera, Enrique J. (2014). High-quality conforming hexahedral meshes of patient-specific abdominal aortic aneurysms including their intraluminal thrombi. "Medical & Biological Engineering & Computing", v. 52 (n. 2); pp. 159-168. ISSN 0140-0118. https://doi.org/10.1007/s11517-013-1127-5.

Description

Title: High-quality conforming hexahedral meshes of patient-specific abdominal aortic aneurysms including their intraluminal thrombi
Author/s:
  • Tarjuelo Gutierrez, Jaime
  • Rodríguez Vila, Borja
  • Pierce, David M.
  • Fastl, Thomas
  • Verbrugghe, P.
  • Fourneau, I.
  • Maleux, G.
  • Herijgers, P.
  • Holzapfel, G.A.
  • Gómez Aguilera, Enrique J.
Item Type: Article
Título de Revista/Publicación: Medical & Biological Engineering & Computing
Date: February 2014
ISSN: 0140-0118
Volume: 52
Subjects:
Freetext Keywords: Magnetic resonance imaging, Abdominal aortic aneurysm, Intraluminal thrombus, Conforming hexahedral meshes, Finite element analysis
Faculty: E.T.S.I. Telecomunicación (UPM)
Department: Tecnología Fotónica y Bioingeniería
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

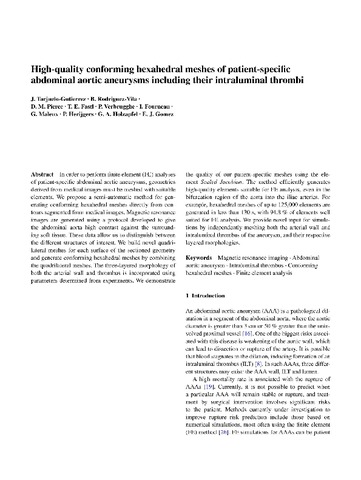

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (4MB) | Preview

Abstract

In order to perform finite element (FE) analyses of patient-specific abdominal aortic aneurysms, geometries derived from medical images must be meshed with suitable elements. We propose a semi-automatic method for generating conforming hexahedral meshes directly from contours segmented from medical images. Magnetic resonance images are generated using a protocol developed to give the abdominal aorta high contrast against the surrounding soft tissue. These data allow us to distinguish between the different structures of interest. We build novel quadrilateral meshes for each surface of the sectioned geometry and generate conforming hexahedral meshes by combining the quadrilateral meshes. The three-layered morphology of both the arterial wall and thrombus is incorporated using parameters determined from experiments. We demonstrate the quality of our patient-specific meshes using the element Scaled Jacobian. The method efficiently generates high-quality elements suitable for FE analysis, even in the bifurcation region of the aorta into the iliac arteries. For example, hexahedral meshes of up to 125,000 elements are generated in less than 130 s, with 94.8 % of elements well suited for FE analysis. We provide novel input for simulations by independently meshing both the arterial wall and intraluminal thrombus of the aneurysm, and their respective layered morphologies.

Funding Projects

TypeCodeAcronymLeaderTitle
FP7248782SCAThKATHOLIEKE UNIVERSITEIT LEUVENSmart Catheterization

More information

Item ID: 35149
DC Identifier: http://oa.upm.es/35149/
OAI Identifier: oai:oa.upm.es:35149
DOI: 10.1007/s11517-013-1127-5
Official URL: http://link.springer.com/article/10.1007%2Fs11517-013-1127-5
Deposited by: Memoria Investigacion
Deposited on: 09 May 2015 13:06
Last Modified: 14 May 2019 11:41
