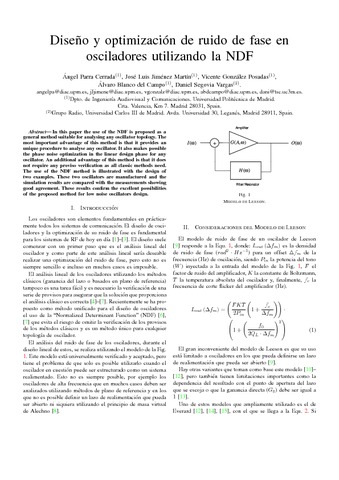

Diseño y optimización de ruido de fase en osciladores utilizando la NDF.

Abstract

In this paper the use of the NDF is proposed as a general method suitable for analysing any oscillator topology. The most important advantage of this method is that it provides an unique procedure to analyse any oscillator. It also makes possible the phase noise optimization in the linear design phase for any oscillator. An additional advantage of this method is that it does not require any proviso verification as all classic methods need. The use of the NDF method is illustrated with the design of two examples. These two oscillators are manufactured and the simulation results are compared with the measurements showing good agreement. These results confirm the excellent possibilities of the proposed method for low noise oscillators design.
