Analysis of Combined Bending and Punching Tests of Reinforced Concrete Slabs within IMPACT III Project

Zinn, Rainer and Borgerhoff, Michael and Stangenberg, Friedhelm and Schneeberger, Christian and Rodríguez Soler, Javier and Lacoma Aller, Luis María and Martinez Cutillas, Francisco J. and Marti Rodriguez, Joaquin (2014). Analysis of Combined Bending and Punching Tests of Reinforced Concrete Slabs within IMPACT III Project. In: "EURODYN 2014. 9th International Conference on Structural Dynamics", 30/06/2014 - 02/07/2014, Porto, Portugal. ISBN 978-972-752-165-4. pp. 3533-3540.

Description

Title: Analysis of Combined Bending and Punching Tests of Reinforced Concrete Slabs within IMPACT III Project
Author/s:
  • Zinn, Rainer
  • Borgerhoff, Michael
  • Stangenberg, Friedhelm
  • Schneeberger, Christian
  • Rodríguez Soler, Javier
  • Lacoma Aller, Luis María
  • Martinez Cutillas, Francisco J.
  • Marti Rodriguez, Joaquin
Item Type: Presentation at Congress or Conference (Article)
Event Title: EURODYN 2014. 9th International Conference on Structural Dynamics
Event Dates: 30/06/2014 - 02/07/2014
Event Location: Porto, Portugal
Title of Book: Proceedings of the 9th International Conference on Structural Dynamics, EURODYN 2014
Date: 2014
ISBN: 978-972-752-165-4
Subjects:
Freetext Keywords: Impact; Soft missile; Reinforced concrete; Bending; Punching; Simulation
Faculty: E.T.S.I. Caminos, Canales y Puertos (UPM)
Department: Mecánica de Medios Continuos y Teoría de Estructuras
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

[img]
Preview

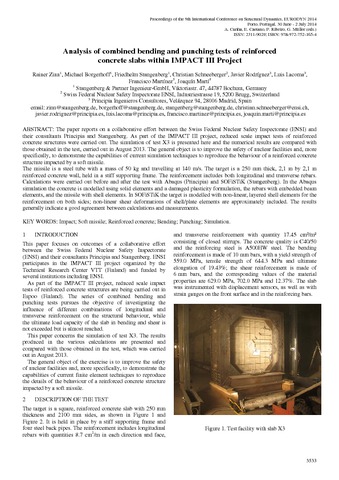

PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (1MB) | Preview

Abstract

The paper reports on a collaborative effort between the Swiss Federal Nuclear Safety Inspectorate (ENSI) and their consultants Principia and Stangenberg. As part of the IMPACT III project, reduced scale impact tests of reinforced concrete structures were carried out. The simulation of test X3 is presented here and the numerical results are compared with those obtained in the test, carried out in August 2013. The general object is to improve the safety of nuclear facilities and, more specifically, to demonstrate the capabilities of current simulation techniques to reproduce the behaviour of a reinforced concrete structure impacted by a soft missile. The missile is a steel tube with a mass of 50 kg and travelling at 140 m/s. The target is a 250 mm thick, 2,1 m by 2,1 m reinforced concrete wall, held in a stiff supporting frame. The reinforcement includes both longitudinal and transverse rebars. Calculations were carried out before and after the test with Abaqus (Principia) and SOFiSTiK (Stangenberg). In the Abaqus simulation the concrete is modelled using solid elements and a damaged plasticity formulation, the rebars with embedded beam elements, and the missile with shell elements. In SOFiSTiK the target is modelled with non-linear, layered shell elements for the reinforcement on both sides; non-linear shear deformations of shell/plate elements are approximately included. The results generally indicate a good agreement between calculations and measurements.
