Optimization and evaluation in space conditions of multi-GHz optical modulators

Porte, Henri and Le Kernec, Arnaud and Peñate Quesada, Laura and Esquivias Moscardo, Ignacio and Brahimi, Houda and Barbero González, Juan and Mottet, Alexandre and Sotom, Michel (2014). Optimization and evaluation in space conditions of multi-GHz optical modulators. In: "International Conference on Space Optics (ICSO 2014)", 07/10/2014 - 10/10/2014, Tenerife, Canary Islands, Spain. pp. 1-7.

Description

Title: Optimization and evaluation in space conditions of multi-GHz optical modulators
Author/s:
  • Porte, Henri
  • Le Kernec, Arnaud
  • Peñate Quesada, Laura
  • Esquivias Moscardo, Ignacio
  • Brahimi, Houda
  • Barbero González, Juan
  • Mottet, Alexandre
  • Sotom, Michel
Item Type: Presentation at Congress or Conference (Article)
Event Title: International Conference on Space Optics (ICSO 2014)
Event Dates: 07/10/2014 - 10/10/2014
Event Location: Tenerife, Canary Islands, Spain
Title of Book: International Conference on Space Optics (ICSO 2014)
Date: 2014
Subjects:
Faculty: E.T.S.I. Telecomunicación (UPM)
Department: Tecnología Fotónica y Bioingeniería
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

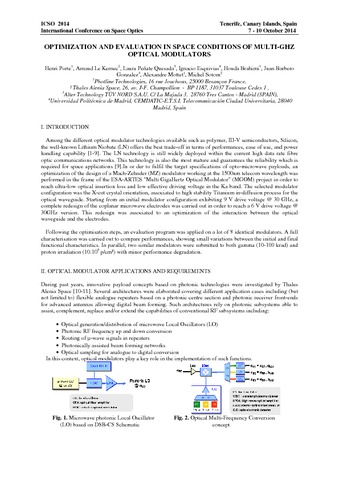

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (746kB) | Preview

Abstract

Among the different optical modulator technologies available such as polymer, III-V semiconductors, Silicon, the well-known Lithium Niobate (LN) offers the best trade-off in terms of performances, ease of use, and power handling capability [1-9]. The LN technology is still widely deployed within the current high data rate fibre optic communications networks. This technology is also the most mature and guarantees the reliability which is required for space applications [9].In or der to fulfil the target specifications of opto-microwave payloads, an optimization of the design of a Mach-Zehnder (MZ) modulator working at the 1500nm telecom wavelength was performed in the frame of the ESA-ARTES "Multi GigaHertz Optical Modulator" (MGOM) project in order to reach ultra-low optical insertion loss and low effective driving voltage in the Ka band. The selected modulator configuration was the X-cut crystal orientation, associated to high stability Titanium in-diffusion process for the optical waveguide. Starting from an initial modulator configuration exhibiting 9 V drive voltage @ 30 GHz, a complete redesign of the coplanar microwave electrodes was carried out in order to reach a 6 V drive voltage @ 30GHz version. This redesign was associated to an optimization of the interaction between the optical waveguide and the electrodes. Following the optimisation steps, an evaluation program was applied on a lot of 8 identical modulators. A full characterisation was carried out to compare performances, showing small variations between the initial and final functional characteristics. In parallel, two similar modulators were submitted to both gamma (10-100 krad) and proton irradiation (10.109 p/cm²) with minor performance degradation.
