ORCID: https://orcid.org/0000-0002-4080-376X and Rey-Stolle Prado, Ignacio
ORCID: https://orcid.org/0000-0002-4919-5609
(2014).

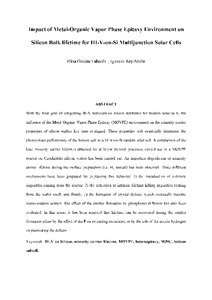

Impact of metal-organic vapor phase epitaxy environment on silicon bulk lifetime for III–V-on-Si multijunction solar cells.
"Solar Energy Materials and Solar Cells", v. 124
;
pp. 17-23.
ISSN 0927-0248.
https://doi.org/10.1016/j.solmat.2014.01.034.
| Título: | Impact of metal-organic vapor phase epitaxy environment on silicon bulk lifetime for III–V-on-Si multijunction solar cells |
|---|---|
| Autor/es: |
|
| Tipo de Documento: | Artículo |
| Título de Revista/Publicación: | Solar Energy Materials and Solar Cells |
| Fecha: | Mayo 2014 |
| ISSN: | 0927-0248 |
| Volumen: | 124 |
| Materias: | |
| ODS: | |
| Palabras Clave Informales: | III–V on silicon; Minority carrier lifetime; MOVPE; Heteroepitaxy; MJSC; Bottom subcell |
| Escuela: | Instituto de Energía Solar (IES) (UPM) |
| Departamento: | Otro |
| Licencias Creative Commons: | Reconocimiento - Sin obra derivada - No comercial |
Vista Previa |
PDF (Portable Document Format)
- Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (1MB) | Vista Previa |
With the final goal of integrating III-V materials on silicon substrates for tandem solar cells, the influence of the Metal-Organic Vapor Phase Epitaxy (MOVPE) environment on the minority carrier properties of silicon wafers has been evaluated. These properties will essentially determine the photovoltaic performance of the bottom cell in a III-V-on-Si tandem solar cell. A comparison of the base minority carrier lifetimes obtained for different thermal processes carried out in a MOVPE reactor on Czochralski silicon wafers has been carried out. An important degradation of minority carrier lifetime during the surface preparation (i.e. H2 anneal) has been observed. Three different mechanisms have been proposed for explaining this behavior: 1) the introduction of extrinsic impurities coming from the reactor; 2) the activation of intrinsic lifetime killing impurities coming from the wafer itself; and finally, 3) the formation of crystal defects, which eventually become recombination centers. The effect of the emitter formation by phosphorus diffusion has also been evaluated. In this sense, it has been reported that lifetime can be recovered during the emitter formation either by the effect of the P on extracting impurities, or by the role of the atomic hydrogen on passivating the defects.
