Virtual reconstruction of the 400 toneladas nao from Diego García de Palacio’s Instrucción náutica (1587)

Visiers Bañón, Ricardo (2015). Virtual reconstruction of the 400 toneladas nao from Diego García de Palacio’s Instrucción náutica (1587). "Ingeniería Naval Académica" (n. 4); ISSN 2340-4779.

Description

Title: Virtual reconstruction of the 400 toneladas nao from Diego García de Palacio’s Instrucción náutica (1587)
Author/s:
  • Visiers Bañón, Ricardo
Item Type: Article
Título de Revista/Publicación: Ingeniería Naval Académica
Date: 26 October 2015
ISSN: 2340-4779
Subjects:
Freetext Keywords: Arquitectura naval,Historia de la Ciencia
Faculty: E.T.S.I. Navales (UPM)
Department: Arquitectura, Construcción y Sistemas Oceánicos y Navales (Dacson)
Creative Commons Licenses: Recognition - Non commercial

Full text

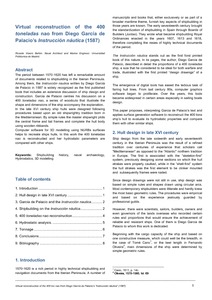

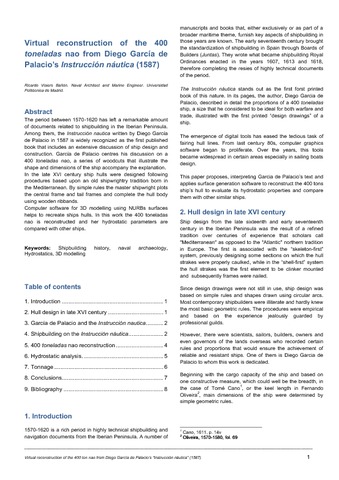

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (2MB) | Preview

Abstract

The period between 1570-1620 has left a remarkable amount of documents related to shipbuilding in the Iberian Peninsula. Among them, the Instrucción nautica written by Diego García de Palacio in 1587 is widely recognized as the first published book that includes an extensive discussion of ship design and construction. García de Palacio centres his discussion on a 400 toneladas nao, a series of woodcuts that illustrate the shape and dimensions of the ship accompany the explanation. In the late XVI century ship hulls were designed following procedures based upon an old shipwrightry tradition born in the Mediterranean. By simple rules the master shipwright plots the central frame and tail frames and complete the hull body using wooden ribbands. Computer software for 3D modelling using NURBs surfaces helps to recreate ships hulls. In this work the 400 toneladas nao is reconstructed and her hydrostatic parameters are compared with other ships.
