Engineering analysis of ITER In-Vessel Viewing System guide tube

Casal Iglesias, Natalia and Bates, Philip and Bede, Ottó and Damiani, Carlo and Dubus, Gregory and Omran, Hassan and Palmer, Jim and Puiu, Adrian and Reichle, Roger and Suárez, Alejandro and Walker, Christopher and Walsh, Michael (2015). Engineering analysis of ITER In-Vessel Viewing System guide tube. "Fusion Engineering And Design", v. 96-97 (n. null); pp. 742-745. ISSN 0920-3796. https://doi.org/10.1016/j.fusengdes.2015.06.070.

Description

Title: Engineering analysis of ITER In-Vessel Viewing System guide tube
Author/s:
  • Casal Iglesias, Natalia
  • Bates, Philip
  • Bede, Ottó
  • Damiani, Carlo
  • Dubus, Gregory
  • Omran, Hassan
  • Palmer, Jim
  • Puiu, Adrian
  • Reichle, Roger
  • Suárez, Alejandro
  • Walker, Christopher
  • Walsh, Michael
Item Type: Article
Título de Revista/Publicación: Fusion Engineering And Design
Date: October 2015
ISSN: 0920-3796
Volume: 96-97
Subjects:
Freetext Keywords: ITER, IVVS
Faculty: E.T.S.I. Industriales (UPM)
Department: Otro
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

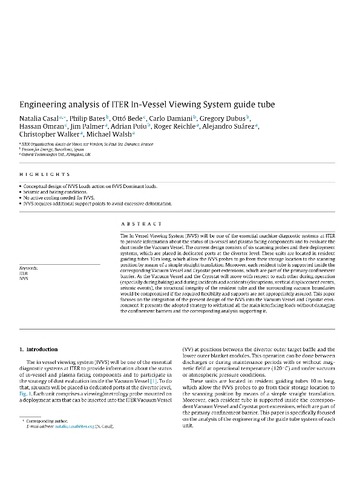

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (2MB) | Preview

Abstract

The In Vessel Viewing System (IVVS) will be one of the essential machine diagnostic systems at ITER to provide information about the status of in-vessel and plasma facing components and to evaluate the dust inside the Vacuum Vessel. The current design consists of six scanning probes and their deployment systems, which are placed in dedicated ports at the divertor level. These units are located in resident guiding tubes 10 m long, which allow the IVVS probes to go from their storage location to the scanning position by means of a simple straight translation. Moreover, each resident tube is supported inside the corresponding Vacuum Vessel and Cryostat port extensions, which are part of the primary confinement barrier. As the Vacuum Vessel and the Cryostat will move with respect to each other during operation (especially during baking) and during incidents and accidents (disruptions, vertical displacement events, seismic events), the structural integrity of the resident tube and the surrounding vacuum boundaries would be compromised if the required flexibility and supports are not appropriately assured. This paper focuses on the integration of the present design of the IVVS into the Vacuum Vessel and Cryostat environment. It presents the adopted strategy to withstand all the main interfacing loads without damaging the confinement barriers and the corresponding analysis supporting it.

More information

Item ID: 38724
DC Identifier: http://oa.upm.es/38724/
OAI Identifier: oai:oa.upm.es:38724
DOI: 10.1016/j.fusengdes.2015.06.070
Official URL: https://www.sciencedirect.com/science/article/pii/S0920379615300995?via%3Dihub
Deposited by: Memoria Investigacion
Deposited on: 07 Dec 2015 18:04
Last Modified: 03 Jun 2019 16:36
