Aerodynamic parametric analysis of an unconventional joined-wing aircraft configuration

Perez Alvarez, Javier and Cuerno Rejado, Cristina and Meseguer Ruiz, José (2015). Aerodynamic parametric analysis of an unconventional joined-wing aircraft configuration. "Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering", v. 230 (n. 3); pp. 1917-1933. ISSN 0954-4100. https://doi.org/10.1177/0954410015620444.

Description

Title: Aerodynamic parametric analysis of an unconventional joined-wing aircraft configuration
Author/s:
  • Perez Alvarez, Javier
  • Cuerno Rejado, Cristina
  • Meseguer Ruiz, José
Item Type: Article
Título de Revista/Publicación: Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering
Date: 15 December 2015
ISSN: 0954-4100
Volume: 230
Subjects:
Faculty: E.T.S. de Ingeniería Aeronáutica y del Espacio (UPM)
Department: Aeronaves y Vehículos Espaciales
Creative Commons Licenses: Recognition - No derivative works - Non commercial

Full text

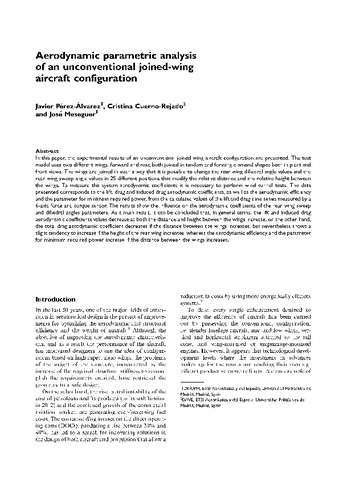

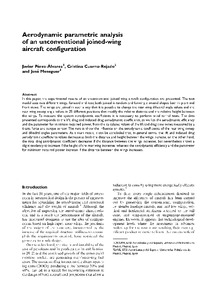

[img]
Preview
PDF - Requires a PDF viewer, such as GSview, Xpdf or Adobe Acrobat Reader
Download (6MB) | Preview

Abstract

In this paper, the experimental results of an unconventional joined-wing aircraft configuration are presented. The test model uses two different wings, forward and rear, both joined in tandem and forming diamond shapes both in plant and front views. The wings are joined in such a way that it is possible to change the rear wing dihedral angle values and the rear wing sweep angle values in 25 different positions that modify the relative distance and the relative height between the wings. To measure the system aerodynamic coefficients itis necessary to perform wind tunnel tests. The datapresented corresponds to the lift, drag and induced drag aerodynamic coefficients, as well as the aerodynamic efficiency and the parameter for minimum required power, from the calculated values of the lift and drag time series measured by a 6-axis force and torque sensor. The results show the influence on the aerodynamic coefficients of the rear wing sweep and dihedral angles parameters. As a main result, it can be concluded that, in general terms, the lift and induced drag aerodynamic coefficients values decrease as both the distance and height between the wings increase, on the other hand, the total drag aerodynamic coefficient decreases if the distance between the wings increases, but nevertheless shows a slight tendency to increase if the height of the rear wing increases, whereas the aerodynamic efficiency and the parameter for minimum required power increase if the distance between the wings increases

More information

Item ID: 40383
DC Identifier: http://oa.upm.es/40383/
OAI Identifier: oai:oa.upm.es:40383
DOI: 10.1177/0954410015620444
Official URL: http://pig.sagepub.com/content/early/2015/12/14/0954410015620444.abstract
Deposited by: Memoria Investigacion
Deposited on: 04 Oct 2016 10:05
Last Modified: 04 Oct 2016 10:05
