Texto completo
Vista Previa |
PDF (Portable Document Format)
- Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (1MB) | Vista Previa |
ORCID: https://orcid.org/0000-0003-3561-5999, Tejado Garrido, Elena María
ORCID: https://orcid.org/0000-0002-5240-6702, Palacios García, Teresa
ORCID: https://orcid.org/0000-0001-7777-6518 and García-Rosales, C.
(2016).
Manufacturing of self-passivating tungsten based alloys by different powder metallurgical routes.
"Physica Scripta", v. 2016
(n. T167);
pp. 1-6.
ISSN 0031-8949.
https://doi.org/10.1088/0031-8949/T167/1/014041.
| Título: | Manufacturing of self-passivating tungsten based alloys by different powder metallurgical routes |
|---|---|
| Autor/es: |
|
| Tipo de Documento: | Artículo |
| Título de Revista/Publicación: | Physica Scripta |
| Fecha: | 19 Enero 2016 |
| ISSN: | 0031-8949 |
| Volumen: | 2016 |
| Número: | T167 |
| Materias: | |
| ODS: | |
| Palabras Clave Informales: | Self-passivating tungsten alloys, plasma-facing material, mechanical alloying, HIP |
| Escuela: | E.T.S.I. Caminos, Canales y Puertos (UPM) |
| Departamento: | Ciencia de los Materiales |
| Licencias Creative Commons: | Reconocimiento - Sin obra derivada - No comercial |
Vista Previa |
PDF (Portable Document Format)
- Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (1MB) | Vista Previa |

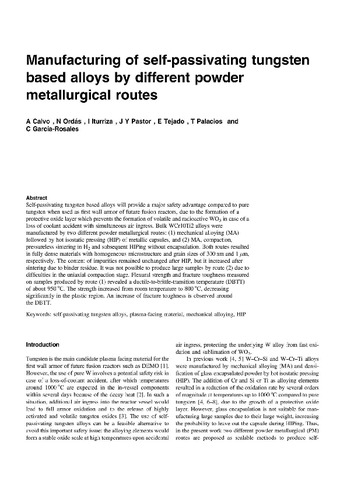

Self-passivating tungsten based alloys will provide a major safety advantage compared to pure tungsten when used as first wall armor of future fusion reactors, due to the formation of a protective oxide layer which prevents the formation of volatile and radioactive WO3 in case of a loss of coolant accident with simultaneous air ingress. Bulk WCr10Ti2 alloys were manufactured by two different powder metallurgical routes: (1) mechanical alloying (MA) followed by hot isostatic pressing (HIP) of metallic capsules, and (2) MA, compaction, pressureless sintering in H2 and subsequent HIPing without encapsulation. Both routes resulted in fully dense materials with homogeneous microstructure and grain sizes of 300 nm and 1 μm, respectively. The content of impurities remained unchanged after HIP, but it increased after sintering due to binder residue. It was not possible to produce large samples by route (2) due to difficulties in the uniaxial compaction stage. Flexural strength and fracture toughness measured on samples produced by route (1) revealed a ductile-to-brittle-transition temperature (DBTT) of about 950 °C. The strength increased from room temperature to 800 °C, decreasing significantly in the plastic region. An increase of fracture toughness is observed around the DBTT.
| ID de Registro: | 40471 |
|---|---|
| Identificador DC: | https://oa.upm.es/40471/ |
| Identificador OAI: | oai:oa.upm.es:40471 |
| URL Portal Científico: | https://portalcientifico.upm.es/es/ipublic/item/5493177 |
| Identificador DOI: | 10.1088/0031-8949/T167/1/014041 |
| URL Oficial: | https://iopscience.iop.org/article/10.1088/0031-89... |
| Depositado por: | Memoria Investigacion |
| Depositado el: | 02 Jun 2016 16:08 |
| Ultima Modificación: | 12 Nov 2025 00:00 |
Publicar en el Archivo Digital desde el Portal Científico
