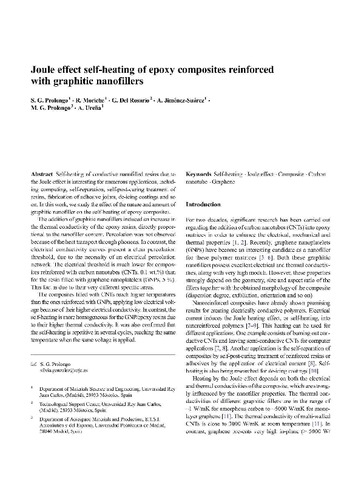

Joule effect self-heating of epoxy composites reinforced with graphitic nanofillers

Resumen

Self-heating of conductive nanofilled resins due to the Joule effect is interesting for numerous applications, including computing, self-reparation, self-post-curing treatment of resins, fabrication of adhesive joints, de-icing coatings and so on. In this work, we study the effect of the nature and amount of graphitic nanofiller on the self-heating of epoxy composites. The addition of graphitic nanofillers induced an increase in the thermal conductivity of the epoxy resins, directly proportional to the nanofiller content. Percolation was not observed because of the heat transport through phonons. In contrast, the electrical conductivity curves present a clear percolation threshold, due to the necessity of an electrical percolation network. The electrical threshold is much lower for composites reinforced with carbon nanotubes (CNTs, 0.1 wt.%) than for the resin filled with graphene nanoplatelets (GNPs, 5 %). This fact is due to their very different specific areas. The composites filled with CNTs reach higher temperatures than the ones reinforced with GNPs, applying low electrical voltage because of their higher electrical conductivity. In contrast, the self-heating is more homogeneous for the GNP/epoxy resins due to their higher thermal conductivity. It was also confirmed that the self-heating is repetitive in several cycles, reaching the same temperature when the same voltage is applied.
