Gain antenna measurement using single cut near field measurements

Sierra Castañer, Manuel; Saccardi, Francesco y Foged, Lars Jacob (2016). Gain antenna measurement using single cut near field measurements. En: "38th Annual AMTA Symposium", 30/10/2016 - 3/11/2016, Austin (EEUU). ISBN 978-1-5090-5179-3. pp. 309-312. https://doi.org/10.1109/AMTAP.2016.7806286.

Descripción

Título: Gain antenna measurement using single cut near field measurements
Autor/es:
  • Sierra Castañer, Manuel
  • Saccardi, Francesco
  • Foged, Lars Jacob
Tipo de Documento: Ponencia en Congreso o Jornada (Artículo)
Título del Evento: 38th Annual AMTA Symposium
Fechas del Evento: 30/10/2016 - 3/11/2016
Lugar del Evento: Austin (EEUU)
Título del Libro: Proceedings of the 38th Annual AMTA Symposium
Fecha: 3 Noviembre 2016
ISBN: 978-1-5090-5179-3
Materias:
Palabras Clave Informales: Antenna measurements, Gain measurement, Gain, Antennas, Noise measurement, Frequency measurement, Probes
Escuela: E.T.S.I. Telecomunicación (UPM)
Departamento: Señales, Sistemas y Radiocomunicaciones
Licencias Creative Commons: Reconocimiento - Sin obra derivada - No comercial

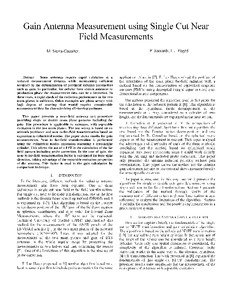

Texto completo

[img]
Vista Previa
PDF (Document Portable Format) - Se necesita un visor de ficheros PDF, como GSview, Xpdf o Adobe Acrobat Reader
Descargar (1MB) | Vista Previa

Resumen

Some antennas require rapid validation at a reduced measurement distance while maintaining sufficient accuracy in the determination of pertinent antenna parameters such as gain. In particular, for cellular base station antennas in production phase the measurement time can be a limitation. In these cases, a rapid check of the radiation performance in the two main planes is sufficient. Other examples are phase arrays with high degree of steering that would require considerable measurement time for characterizing all steering positions. This paper presents a near-field antenna test procedure providing single or double main plane patterns including the gain. The procedure is applicable to antennas, with separable excitation in the two main planes. The test set-up is based on an azimuth positioner and near to far-field transformation based on expansion in cylindrical modes. The paper shows results for gain measurements. Near to far-field transformation is performed using the cylindrical modes expansion assuming a zero-height cylinder. This allows the use of a FFT in the calculation of the far field pattern including probe correction. In the case of gain, the near to far-field transformation factor is calculated for bore sight direction, taking advantage of the separable excitation properties of the antenna. This factor is used in the gain calculation by comparison technique.

Proyectos asociados

TipoCódigoAcrónimoResponsableTítulo
Gobierno de EspañaSin especificarproject ENABLING5GSin especificarSin especificar
Comunidad de MadridS2013/ICE-3000SPADERADAR-CMSin especificarSin especificar
