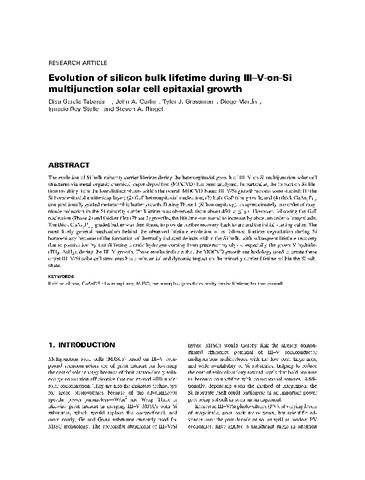

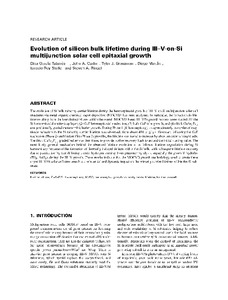

Evolution of silicon bulk lifetime during III-V-on-Si multijunction solar cell epitaxial growth

Resumen

The evolution of Si bulk minority carrier lifetime during the heteroepitaxial growth of III–V on Si multijunction solar cell structures via metal-organic chemical vapor deposition (MOCVD) has been analyzed. In particular, the impact on Si lifetime resulting from the four distinct phases within the overall MOCVD-based III–V/Si growth process were studied: (1) the Si homoepitaxial emitter/cap layer; (2) GaP heteroepitaxial nucleation; (3) bulk GaP film growth; and (4) thick GaAsyP1-y compositionally graded metamorphic buffer growth. During Phase 1 (Si homoepitaxy), an approximately two order of magnitude reduction in the Si minority carrier lifetime was observed, from about 450 to ≤1 µs. However, following the GaP nucleation (Phase 2) and thicker film (Phase 3) growths, the lifetime was found to increase by about an order of magnitude. The thick GaAsyP1-y graded buffer was then found to provide further recovery back to around the initial starting value. The most likely general mechanism behind the observed lifetime evolution is as follows: lifetime degradation during Si homoepitaxy because of the formation of thermally induced defects within the Si bulk, with subsequent lifetime recovery due to passivation by fast-diffusing atomic hydrogen coming from precursor pyrolysis, especially the group-V hydrides (PH3, AsH3), during the III–V growth. These results indicate that the MOCVD growth methodology used to create these target III–V/Si solar cell structures has a substantial and dynamic impact on the minority carrier lifetime within the Si substrate.
