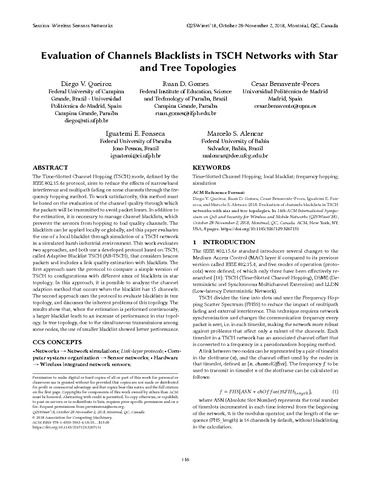

Evaluation of Channels Blacklists in TSCH Networks with Star and Tree

Resumen

The Time-Slotted Channel Hopping (TSCH) mode, defined by the IEEE 802.15.4e protocol, aims to reduce the effects of narrowband interference and multipath fading on some channels through the frequency hopping method. To work satisfactorily, this method must be based on the evaluation of the channel quality through which the packets will be transmitted to avoid packet losses. In addition to the estimation, it is necessary to manage channel blacklists, which prevents the sensors from hopping to bad quality channels. The blacklists can be applied locally or globally, and this paper evaluates the use of a local blacklist through simulation of a TSCH network in a simulated harsh industrial environment. This work evaluates two approaches, and both use a developed protocol based on TSCH, called Adaptive Blacklist TSCH (AB-TSCH), that considers beacon packets and includes a link quality estimation with blacklists. The first approach uses the protocol to compare a simple version of TSCH to configurations with different sizes of blacklists in star topology. In this approach, it is possible to analyze the channel adaption method that occurs when the blacklist has 15 channels. The second approach uses the protocol to evaluate blacklists in tree topology, and discusses the inherent problems of this topology. The results show that, when the estimation is performed continuously, a larger blacklist leads to an increase of performance in star topology. In tree topology, due to the simultaneous transmissions among some nodes, the use of smaller blacklist showed better performance.
