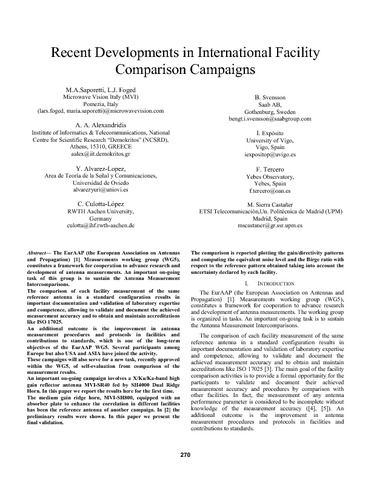

Recent developments in international facility comparison campaigns

Resumen

The EurAAP (the European Association on Antennas and Propagation) [1] Measurements working group (WG5), constitutes a framework for cooperation to advance research and development of antenna measurements. An important on-going task of this group is to sustain the Antenna Measurement Intercomparisons. The comparison of each facility measurement of the same reference antenna in a standard configuration results in important documentation and validation of laboratory expertise and competence, allowing to validate and document the achieved measurement accuracy and to obtain and maintain accreditations like ISO 17025. An additional outcome is the improvement in antenna measurement procedures and protocols in facilities and contributions to standards, which is one of the long-term objectives of the EurAAP WG5. Several participants among Europe but also USA and ASIA have joined the activity. These campaigns will also serve for a new task, recently approved within the WG5, of self-evaluation from comparison of the measurement results. An important on-going campaign involves a X/Ku/Ka-band high gain reflector antenna MVI-SR40 fed by SH4000 Dual Ridge Horn. In this paper we report the results here for the first time. The medium gain ridge horn, MVI-SH800, equipped with an absorber plate to enhance the correlation in different facilities has been the reference antenna of another campaign. In [2] the preliminary results were shown. In this paper we present the final validation. The comparison is reported plotting the gain/directivity patterns and computing the equivalent noise level and the Birge ratio with respect to the reference pattern obtained taking into account the uncertainty declared by each facility.
