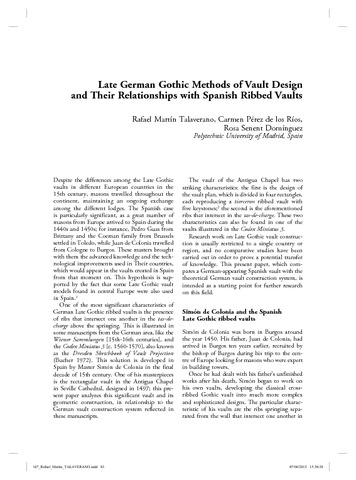

Late Gothic German Vault Design Methods and Its Relationship with Spanish Ribbed Vaults

Abstract

The arrival of European master masons to Burgos and Toledo during the mid-fifteenth century was essential for the promotion of the late Gothic ribbed vault design techniques in Spain. The Antigua Chapel in Seville Cathedral, designed by the Spanish master mason Simón de Colonia on 1497, provides an outstanding case study on this subject. This vault is characterized by the interlacing of the ribs near the springing, reflecting the influence of German ribbed vault designs. This paper analyses the relationship between German ribbed vaults and their design methods with those of Spanish ribbed vaults; with particular attention to the presence of ribs that cut through one another above the springing, materialized in the work of Simón de Colonia. This characteristic is reflected in some manuscripts in the German area, like the Wiener Sammlungen (15th-16th centuries) and the Codex Miniatus 3 (ca. 1560-1570), but no Spanish documents of the same period make reference to it.
