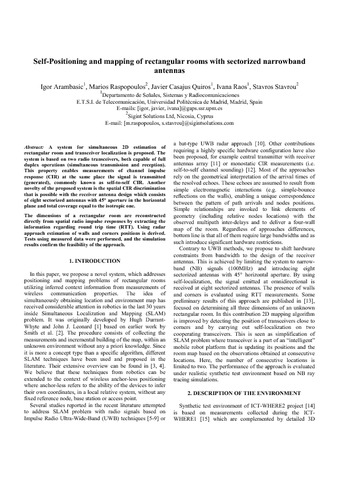

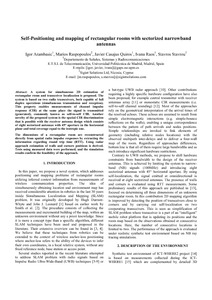

Self-positioning and mapping of rectangular rooms with sectorized narrowband antennas

Resumen

A system for simultaneous 2D estimation of rectangular room and transceiver localization is proposed. The system is based on two radio transceivers, both capable of full duplex operations (simultaneous transmission and reception). This property enables measurements of channel impulse response (CIR) at the same place the signal is transmitted (generated), commonly known as self-to-self CIR. Another novelty of the proposed system is the spatial CIR discrimination that is possible with the receiver antenna design which consists of eight sectorized antennas with 45° aperture in the horizontal plane and total coverage equal to the isotropic one. The dimensions of a rectangular room are reconstructed directly from spatial radio impulse responses by extracting the information regarding round trip time (RTT). Using radar approach estimation of walls and corners positions is derived. Tests using measured data were performed, and the simulation results confirm the feasibility of the approach.
